Do you struggle to turn your design into a real product? Bad parts waste time and money. I will show you how to master injection molding today.
**Plastic injection molding is a manufacturing process. It forces melted plastic into a metal mold to create parts. The cost ranges from a few thousand to over $100,000. You can do simple DIY molding at home. But professional results always require industrial machines.**

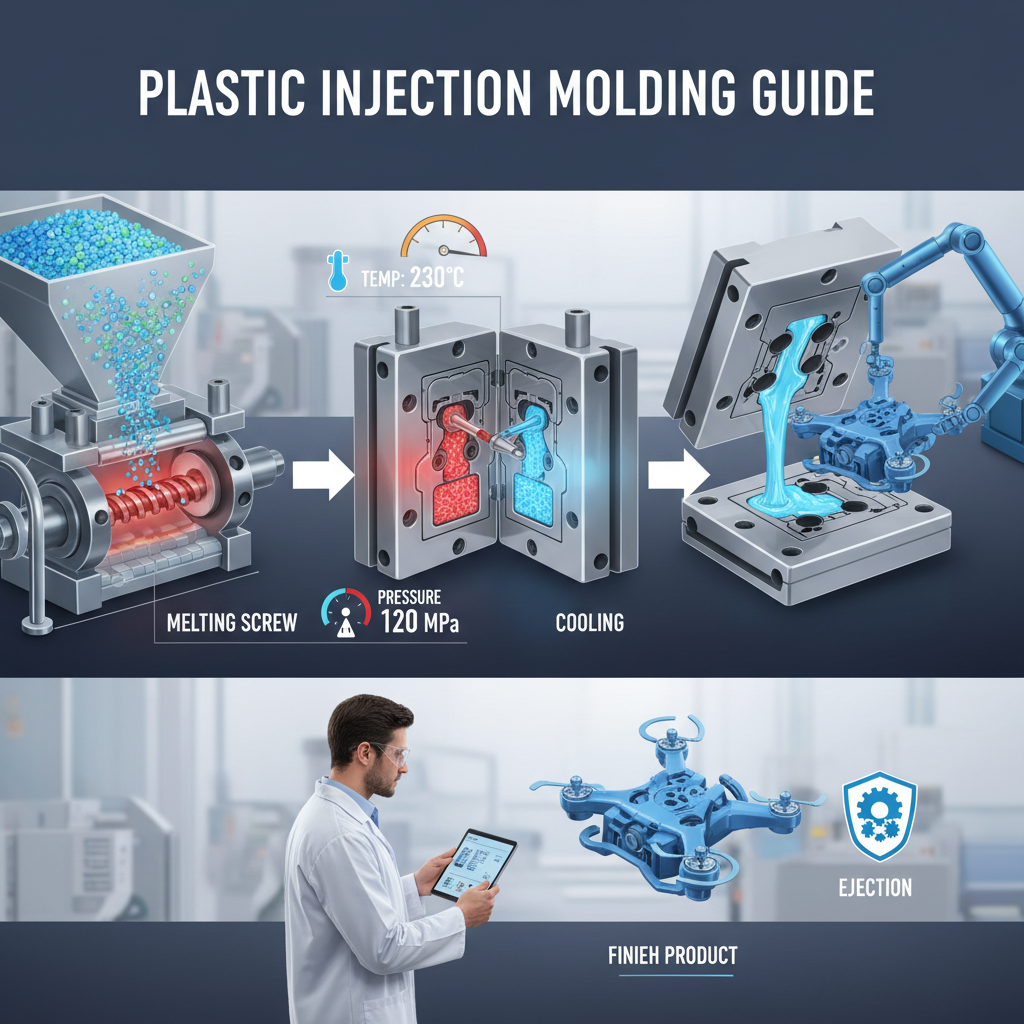

Plastic injection molding guide
You must know the details to build perfect plastic parts. I will walk you through the exact steps and costs right now. This guide will help you make the best choice for your next big project.
## What is plastic molding injection?
Do complex factory terms confuse you? Not knowing the process leads to design mistakes. I will explain this plastic process in simple words.
The plastic molding injection machine melts raw plastic pellets. The machine injects the hot liquid into a steel mold under high pressure. The plastic cools and becomes hard. Finally, the mold opens to release the finished solid part.

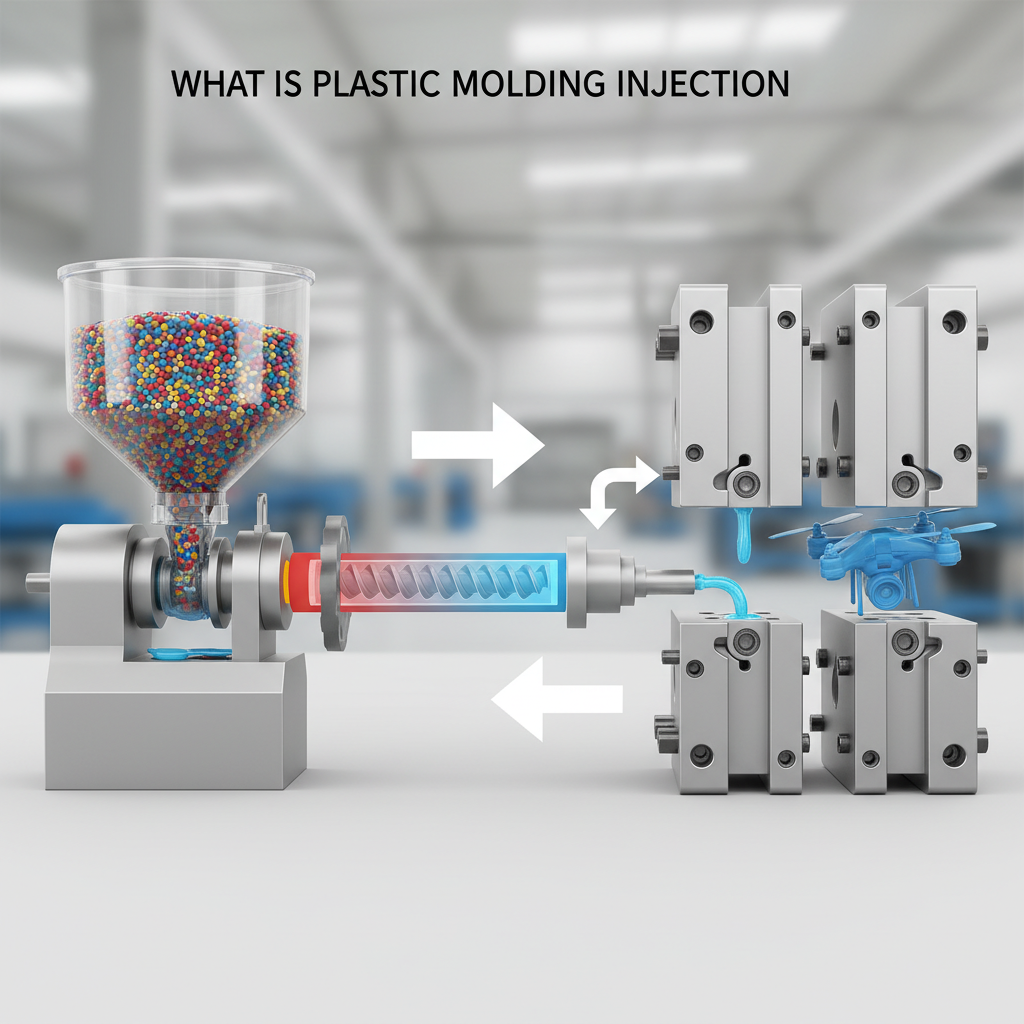

What is plastic molding injection
### Breaking Down the Molding Process
You need to look at the whole machine system to truly understand this process. I remember my first day in this industry. I thought you just pour plastic into a simple box. I was wrong. The process is much more precise. The system uses three main units. These units are the injection unit, the mold, and the clamping unit.
First, the injection unit melts the raw material. A large screw pushes the hot plastic forward. Second, the mold gives the plastic its shape. We use highly precise machines to cut these molds perfectly. Third, the clamping unit holds the mold shut. The clamping unit must stay closed against extreme pressure. The mold will leak plastic if it opens even a tiny bit. We call this leaked plastic flash.
I want to show you the main steps in a clear way:
| Step | Action | Time Needed |
|—|—|—|
| 1. Clamping | The machine locks the two mold halves together. | Very fast |
| 2. Injection | Melted plastic shoots into the mold cavity. | Very fast |
| 3. Cooling | The plastic stays in the mold to harden. | Longest step |
| 4. Ejection | Pins push the finished part out of the mold. | Very fast |
You must plan for the cooling step. Thick walls take a long time to cool. Thick walls also shrink badly. You should keep the walls thin and even. Your parts will come out perfect. You will also save money.
## How much does a plastic injection mold cost?
Are high tooling costs ruining your project budget? A bad guess can stop your production early. I will break down the real costs of mold making today.
A small aluminum mold costs between $100 and $2,000. A standard steel mold costs $2,000 to $10,000. Complex steel molds for massive production run from $10,000 to over $100,000. The price depends mostly on part complexity and mold material.

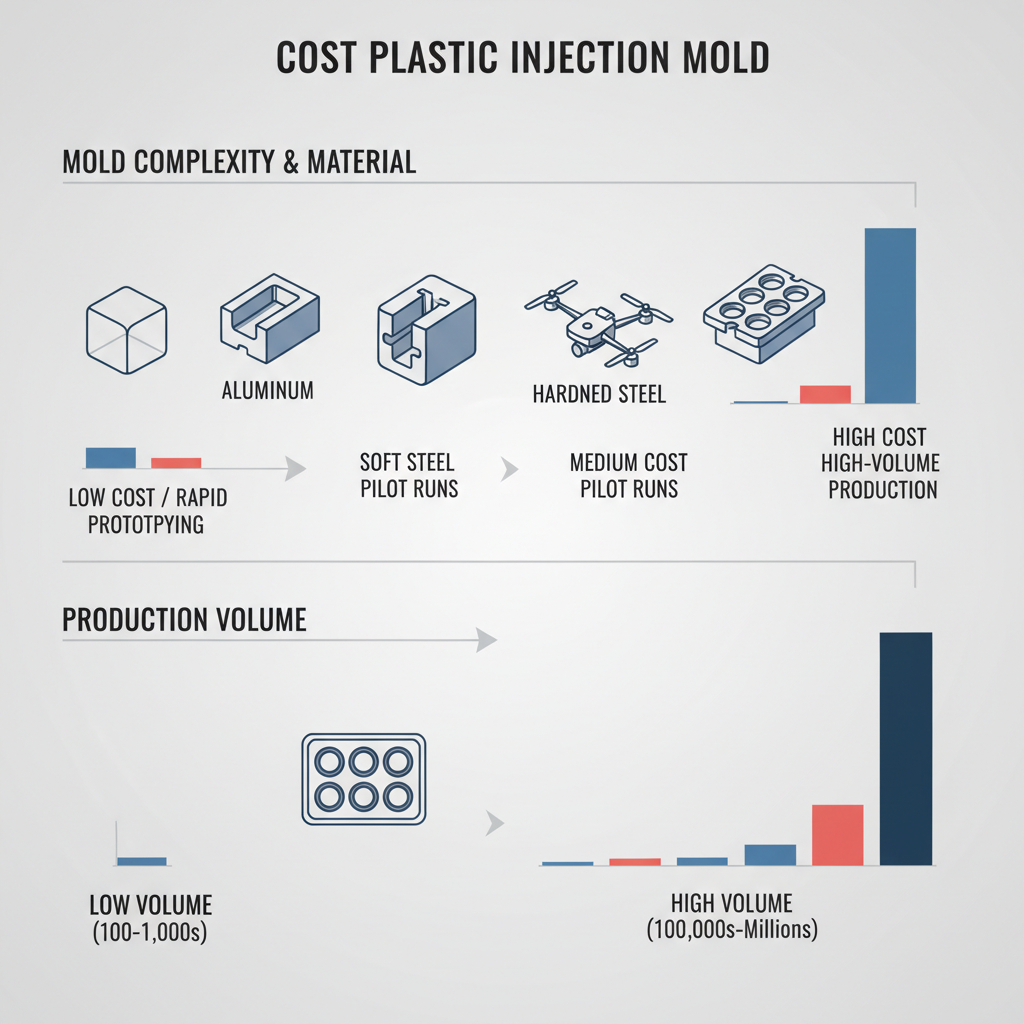

Cost of plastic injection mold
### What Drives the Tooling Price?
I get emails from designers every single week. They always ask why their mold quotes are so high. I will tell you the truth. The price depends mostly on the chosen metal. The price also depends on the number of parts. I work at KENVOX. We build over 1,200 sets of molds every year. I know exactly where your money goes.
We can use softer metal for small projects. Soft metal cuts fast. Soft metal saves you money. But you might need millions of consumer electronic parts. You must use hardened steel for large orders. Hard steel takes a very long time to shape. We use slow wire-cutting machines and EDMs. Time is money in a machine shop.
Let us look at the factors that change the price:
| Factor | Low Cost Impact | High Cost Impact |
|—|—|—|
| Mold Material | Aluminum or soft steel | Hardened steel |
| Cavities | Single cavity | Multi-cavity |
| Part Complexity | Simple open-and-shut box | Undercuts and sliders |
| Surface Finish | Standard smooth finish | High-polish mirror |
You can reduce your costs. You must keep the design simple. You should avoid undercuts. Every slider adds more steel to your bill. Every lifter adds more machine time to your bill. I always help my clients optimize their CAD files. This help drops their tooling costs down.
## Can you do plastic injection molding at home?
Do you want to test parts fast without paying a big factory? Waiting for samples feels frustrating. I will show you if home injection molding is worth trying.
Yes, you can do plastic injection molding at home. You can use small desktop machines. You can use cheap aluminum molds. But home setups are only good for small parts. Home setups cannot match factory quality. Home setups cannot match factory speed.
DIY plastic injection molding at home
### The Reality of DIY Molding
Many clever designers try to make parts in their garage. I tried to build a small hand-press machine myself many years ago. The project was fun. But the machine was very limited. You can buy a desktop injection machine today. These small machines cost a few thousand dollars. You can even print a plastic mold on a good 3D printer.
But you must know the machine limits. A home machine does not have strong clamping force. Our industrial machines at KENVOX apply hundreds of tons of pressure. A home machine applies maybe one ton of pressure. You cannot fill large parts with low pressure. The hot plastic will cool too fast. The plastic will freeze before it reaches the end of the mold.
I want to show you a clear comparison:
| Feature | Home DIY Setup | Industrial Factory Setup |
|—|—|—|
| Machine Cost | $500 to $5,000 | $50,000 to $500,000+ |
| Part Size Limit | Very small parts | Very large parts |
| Pressure | Very low pressure | Very high pressure |
| Quality Control | Manual and basic | Strict and certified |
A home machine is fine for ten small knobs. But you might need strong parts. You might need tight tolerances. You might need real materials for consumer electronics. You must use a real factory for professional parts. The pressure and heat control are just too important.
## What types of plastic can be injection molded?
Do you worry about picking the wrong plastic? Broken prototypes waste your time and money. I will guide you to the right material for your exact needs.
You can mold almost any thermoplastic material. The most common plastics are ABS, Polycarbonate, Polypropylene, and Nylon. Each plastic has different strengths. You can also mold flexible materials like TPU. You can even use silicone with the right type of mold.

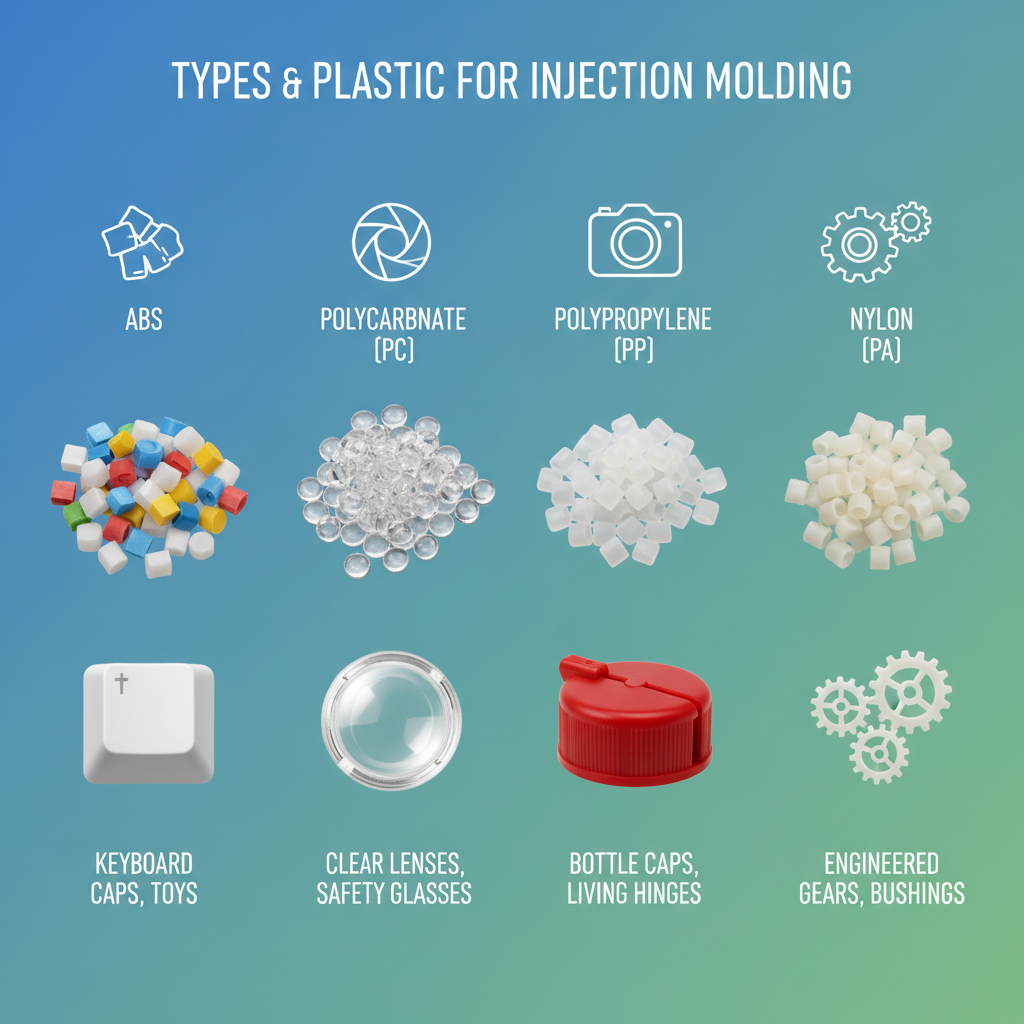

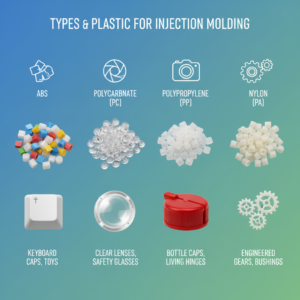

Types of plastic for injection molding
### Choosing the Best Material
Your material choice changes everything. I have seen great designs fail many times. The designers simply picked a brittle plastic. I have worked in this industry for over ten years. My team at KENVOX has molded thousands of tons of material. I know how each plastic flows. I know how each plastic shrinks.
You will likely use ABS or Polycarbonate for consumer electronics. ABS is cheap. ABS is strong. ABS looks good. Polycarbonate is very tough. Polycarbonate can be clear like glass. You must use Polypropylene for a living hinge. Polypropylene can bend thousands of times without breaking. Nylon is the best choice for gears. Nylon slides easily against other moving parts.
Here is a simple guide for you:
| Material Name | Best Feature | Common Use Case |
|—|—|—|
| ABS | Good impact strength | Electronic housings |
| Polycarbonate | Very clear and tough | Lenses and clear covers |
| Polypropylene | Bends very well | Living hinges |
| Nylon | Very tough and low friction | Gears and bearings |
You must remember one important fact. Every plastic shrinks differently. The plastic shrinks when it cools. You might change your material after we cut the steel mold. Your parts will not fit together. You must always decide on your exact plastic first. You must choose the material before the mold design begins.
## Conclusion
Plastic injection molding makes perfect parts. You can design better products now. You know the costs, processes, and materials. You can launch your next big project with total confidence.
