Is Custom Plastic Injection Molding the Best Choice for Your Next Project?
Are you struggling to choose a manufacturing method? Picking the wrong one wastes time and money. I will help you see if custom plastic injection molding fits your needs.
Custom plastic injection molding is often the best choice for high-volume production. It offers low per-part costs, high consistency, and supports complex designs. However, for low volumes or early prototypes, processes like 3D printing or CNC machining might be better options.
You might wonder if this process is right for you. I faced this same choice many times in my ten years of product design. Let us look at the details so you can make a smart decision.

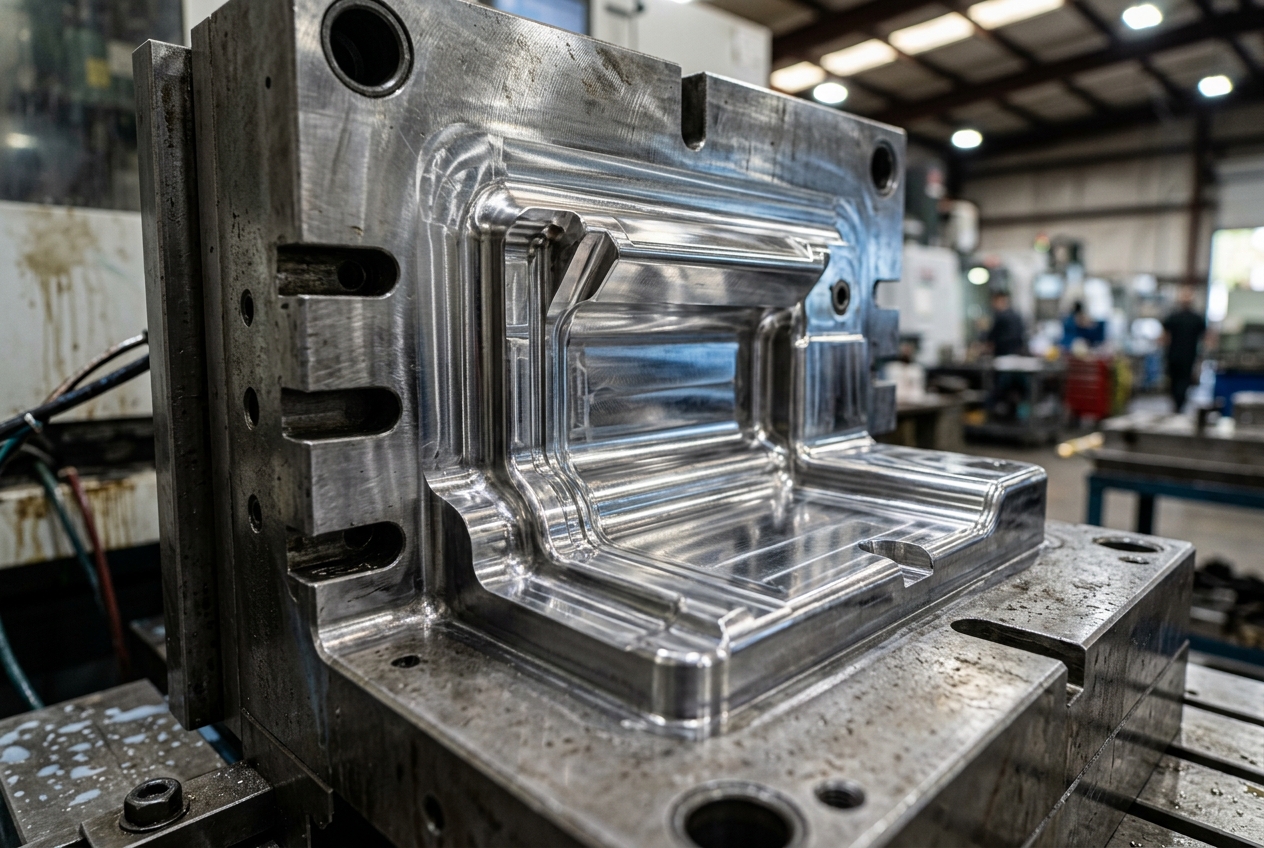

How long do plastic injection molds last?
Do you worry about tooling wearing out too fast? Broken molds halt production and hurt your profits. I will show you what to expect from your mold lifespan.
A high-quality steel plastic injection mold usually lasts between 100,000 and one million cycles. The exact lifespan depends on the mold material, the plastic resin used, and how well you maintain the mold. Aluminum molds have a shorter life, often under 10,000 cycles.
Factors Affecting Mold Life
Mold life depends on several key things. First, the metal used to make the mold matters most. Hardened steel lasts the longest. Second, the plastic material you inject plays a huge role. Some plastics have glass fibers. These fibers act like sandpaper and wear the mold down fast. Third, mold maintenance is very important. I remember a project where we skipped regular cleaning. The mold broke down early, and we lost weeks of production. You must clean the tool and check the pins often.
Choosing the Right Mold Material
You must match the mold material to your expected production volume.
| Mold Material | Typical Lifespan (Cycles) | Best Use Case |
|---|---|---|
| Aluminum | 1,000 – 10,000 | Prototypes, very low volume |
| Soft Steel (P20) | 50,000 – 100,000 | Medium volume production |
| Hardened Steel (H13) | 500,000 – 1,000,000+ | High volume, abrasive plastics |
You need to think about your total cost. A cheap mold might seem good at first. But if you need to make many parts, a hard steel mold is cheaper in the end. Always do a good Return on Investment (ROI) check early. It is a big mistake to buy an aluminum mold when you plan to sell a million parts.

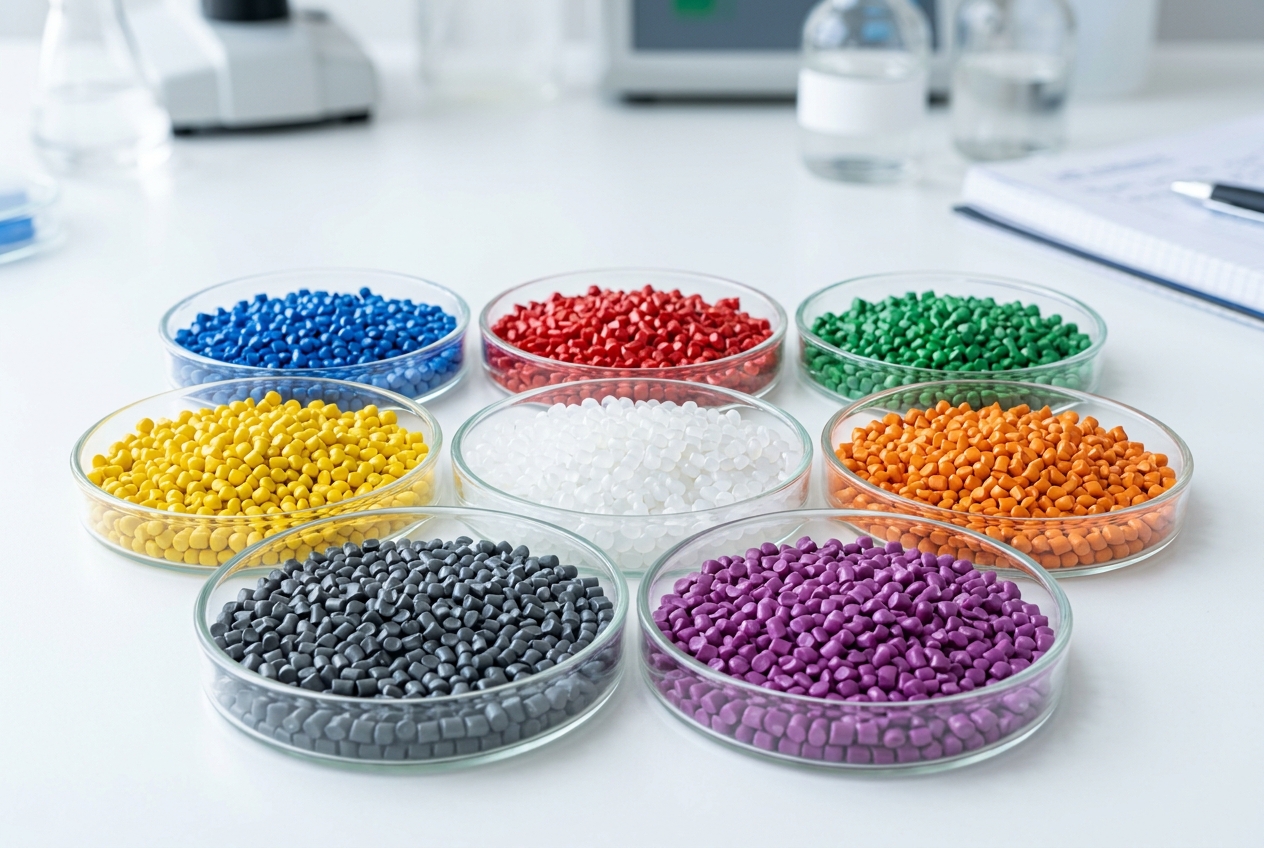

What is the best material for injection moulding?
Are you confused by all the plastic choices? The wrong material can make your product fail. I will help you find the best material for your needs.
There is no single best material for injection molding. The best choice depends on your product needs. Common good choices include ABS for general parts, Polypropylene for living hinges, Polycarbonate for impact resistance, and Nylon for strong mechanical parts.
Common Plastic Materials
Choosing the right plastic is a big part of my job as a designer. You have many options. Each material has different strengths. You must look at what your part needs to do. Does it need to handle heat? Must it bend without breaking? Will it sit in the sun all day? Answering these questions helps you narrow down the choices.
How to Choose
Here is a simple guide to some very common materials used in custom plastic injection molding.
| Material | Key Strength | Common Uses |
|---|---|---|
| ABS | Good impact, easy to mold | Consumer goods, electronic housings |
| Polypropylene (PP) | High chemical resistance, bends well | Packaging, containers, living hinges |
| Polycarbonate (PC) | Very high impact strength, clear | Medical devices, safety glasses |
| Nylon (PA) | Very strong, resists wear | Gears, mechanical parts |
You also need to think about how the plastic shrinks when it cools. I spend a lot of time calculating shrink rates. If you guess wrong, your part will not fit right. Always talk to your manufacturer about the material early in the project. They can help you do a Design for Manufacturability (DFM) check. This step saves you from making bad choices and wasting money.
Can Hashimoto’s cause mold exposure?
Are you mixing up health issues with manufacturing terms? This is a common point of confusion online. I will clear up this misunderstanding right now.
No, Hashimoto’s disease does not cause mold exposure. Hashimoto’s is an autoimmune disorder that affects the thyroid gland. Mold exposure comes from living or working in damp environments with fungal growth. However, some studies suggest that toxic fungal mold might trigger autoimmune conditions like Hashimoto’s.
Two Different Kinds of Mold
As a product designer, I talk about molds every day. But in my industry, a mold is a heavy steel tool used to shape plastic. In medicine and homes, mold is a type of fungus. These are two completely different things. People often search the internet and mix them up. It is easy to see why the words cause confusion.
Autoimmune Disease and Environment
Hashimoto’s thyroiditis is a health condition. Your body attacks its own thyroid gland. You do not get this from custom plastic injection molding. But what about fungal mold? Can fungus hurt your thyroid?
| Topic | Definition | Connection |
|---|---|---|
| Hashimoto’s | Autoimmune thyroid disease | A health condition inside the body |
| Fungal Mold | Spores growing in damp places | An environmental hazard |
| Industrial Mold | Steel tool for making parts | Used in factories |
Some doctors think that living in a house with fungal mold can stress your immune system. This stress might make Hashimoto’s worse. I once had a friend who felt very sick until they fixed a water leak in their house. So, fungal mold is bad for your health, but it has nothing to do with making plastic parts in a factory.

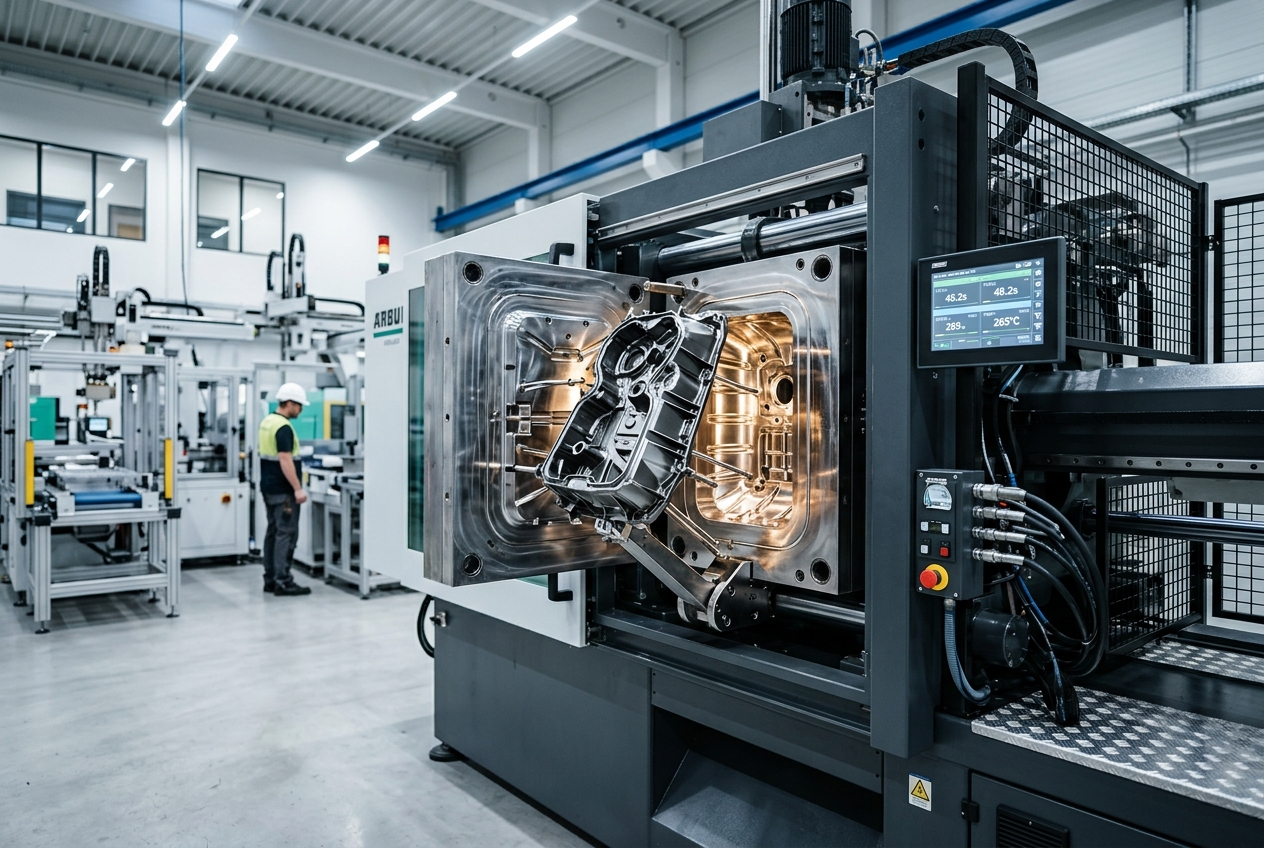

What is custom plastic injection molding?
Do you need to make many plastic parts but do not know how? Traditional ways are too slow. I will explain how this powerful process works.
Custom plastic injection molding is a manufacturing process used to make large numbers of identical plastic parts. Hot, melted plastic is forced into a custom-made metal cavity or mold. The plastic cools and hardens into the shape of the mold. The part is then pushed out.

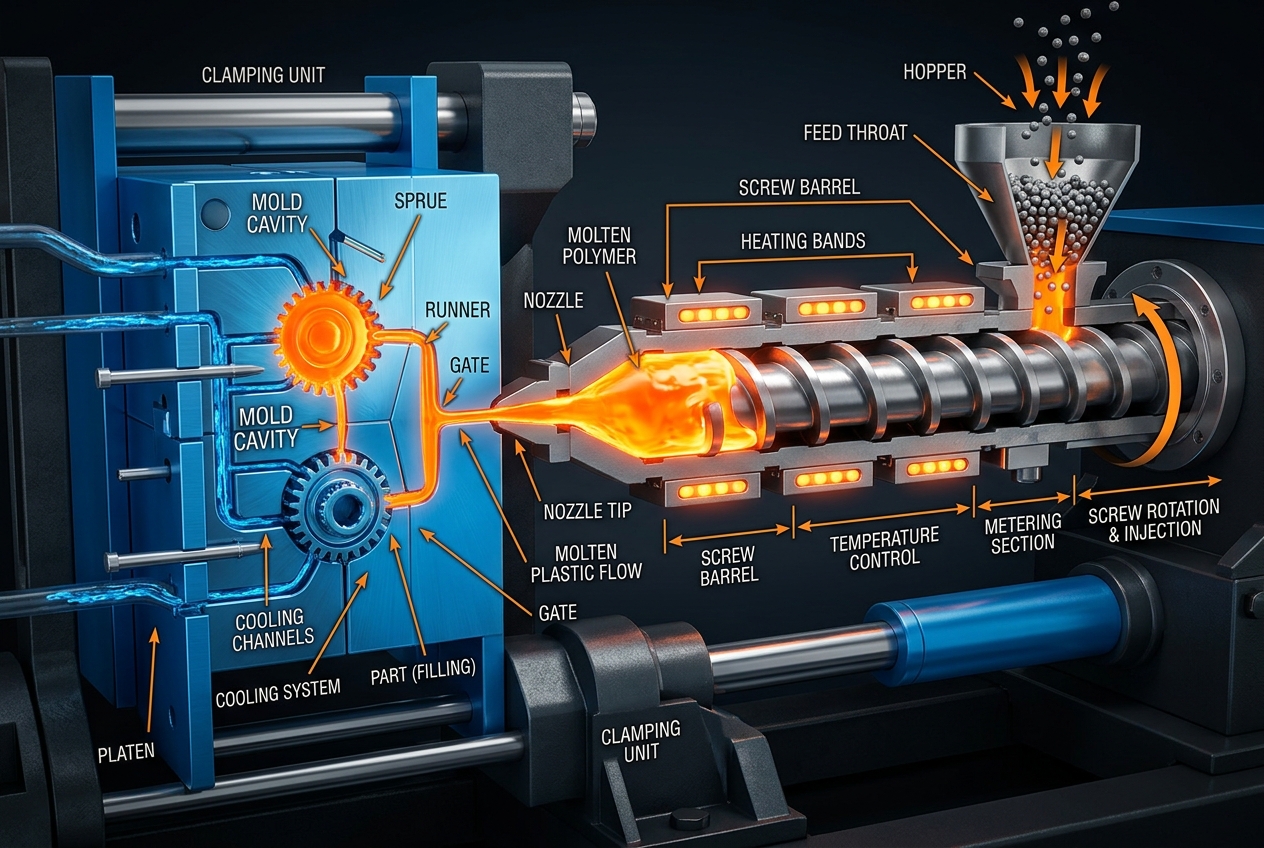

How the Process Works
This process is like making waffles, but with plastic and heavy machinery. First, you need a mold. This mold is cut from steel or aluminum to match your design perfectly. Then, plastic pellets go into a machine. The machine heats the plastic until it melts into a thick liquid. It takes a lot of heat and force.
Step by Step
A large screw then pushes this melted plastic into the closed mold under high pressure.
| Step | Action | Result |
|---|---|---|
| 1. Melt | Heat plastic pellets | Plastic turns into liquid |
| 2. Inject | Push liquid into mold | Mold fills completely |
| 3. Cool | Wait a few seconds | Plastic becomes solid |
| 4. Eject | Open mold and push part out | Finished part is ready |
The mold must have a cooling system to make the plastic solid fast. After it is solid, the mold opens. Pins push the new part out. The mold closes, and it happens again. It is very fast. I love watching the machines run in the factory. They can make thousands of perfect parts every day. When production volumes are big and design changes are small, this process gives you unmatched economies of scale.
How much does it cost to make a plastic injection mold?
Are you scared of the high starting costs? Hidden fees can ruin your project budget. I will break down the real costs of making a mold.
A custom plastic injection mold typically costs between a few thousand dollars and over one hundred thousand dollars. The exact price depends on the size of the part, the complexity of the design, the number of cavities, and the type of metal used to build the tool.
Breaking Down the Tooling Cost
The cost of the mold is the biggest hurdle for new projects. I have seen many people shocked by the quotes. But you are paying for high precision. A mold is a custom machine all on its own. It has moving parts, cooling lines, and perfectly smooth surfaces. Making these tools takes a lot of time and skill.
Cost Factors
Here is a look at what changes the price.
| Factor | Low Cost | High Cost |
|---|---|---|
| Material | Aluminum | Hardened Steel |
| Complexity | Simple box shape | Many undercuts and moving parts |
| Cavities | 1 cavity (makes 1 part) | 32 cavities (makes 32 parts at once) |
| Surface Finish | Standard polish | High gloss or custom texture |
A simple aluminum mold for a small part might cost a few thousand dollars. A complex steel mold for a car dashboard could cost over one hundred thousand dollars. You must look at the total cost of ownership. A large upfront cost might seem scary. But if it makes one million parts, the tool cost per part is very low. For large production runs, this initial investment is easy to handle and leads to great profits.
Conclusion
Custom plastic injection molding is a reliable, scalable choice for mass production. By balancing mold life, material, and volume, you ensure great product quality and good profits for your project.
