Why Does Injection Molding Fail—and What Are the Proven Solutions?
Your line looks fine until the same defect shows up again. Scrap piles up. You lose trust in the run. That pain is real when molding should scale cleanly.
Most molding failures come from mold design, venting, cooling, and gate placement—not bad luck. Fix those roots first, then tune process. Flash, burns, jetting, and weld lines each have proven fixes.
I have sat through too many trial meetings where everyone blamed the machine first. The numbers looked random until we traced the pattern back to the tool. Once you see that link, you stop fighting symptoms and start fixing the system. The sections below walk through why parts fail and what actually works on the floor.
Why Injection Molding Fails: Design, Venting, Cooling, and Gate Placement?
A perfect setup on a weak mold still gives you warpage, weak knit lines, or burn marks. I felt that frustration on a consumer housing job years ago.

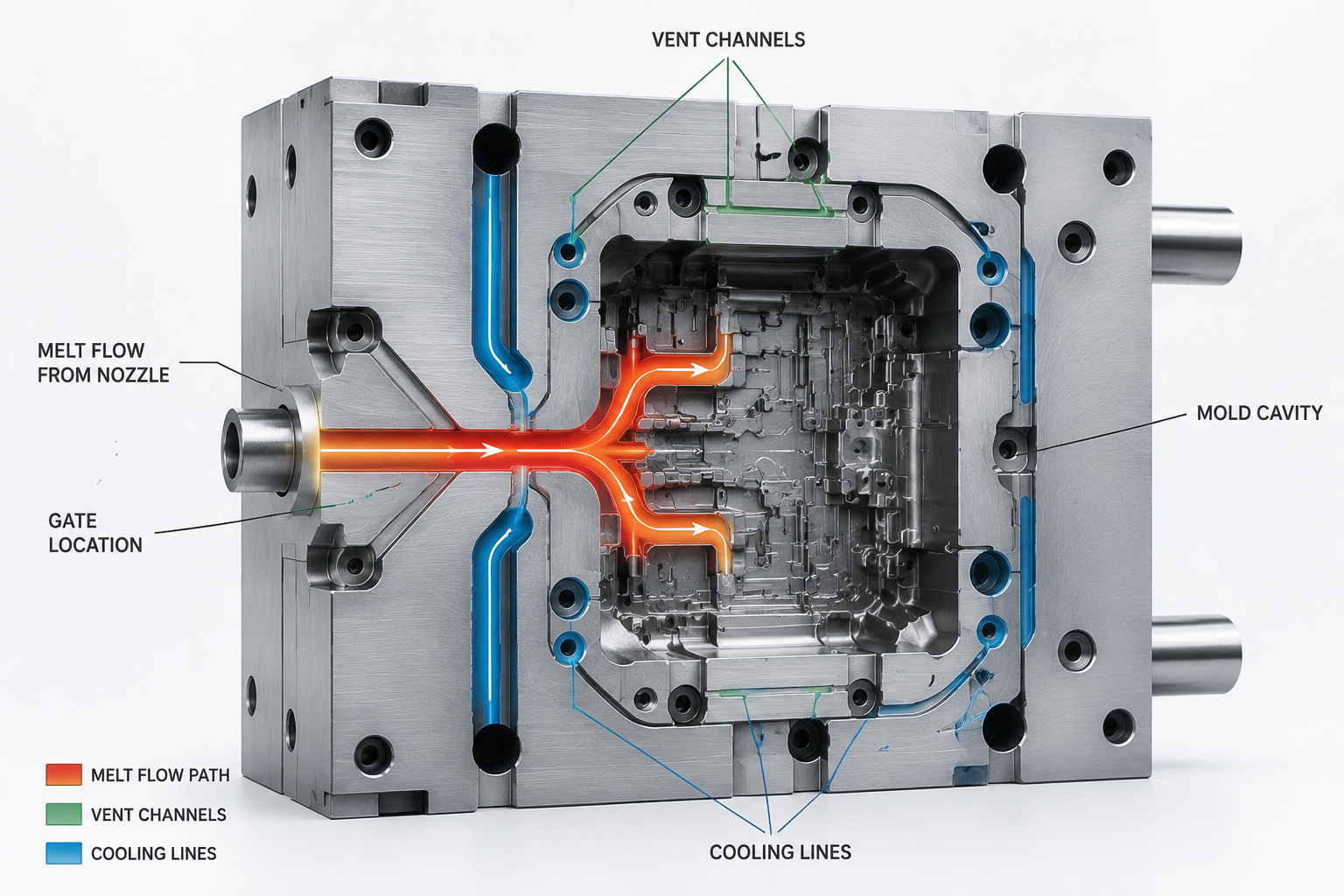

Recurring defects usually trace to how melt enters, how air exits, and how the cavity cools. Gates, vents, cooling layout, and part geometry work together—weakness in one shows up in the part.
When I audit a troubled mold, I start with flow, not pressure charts alone. Gate placement sets the whole story. A gate in the wrong spot lengthens flow paths, splits filling, or parks a weld line on a snap or screw boss. I have seen jetting when melt shot fast into open cavity space and never touched the wall first.
Venting is the other silent killer. Air has to leave before the last pocket fills. Vents at end-of-fill, rib tips, corners, and knit zones matter. When vents are shallow or missing, air compresses like diesel. Burn marks and short shots follow. Cooling ties to shrink and cycle time. Hot spots hold cycle time up and can degrade resin. Fast-cooling zones freeze flow fronts early and make weld lines worse.
Part design amplifies all of this. Thin-to-thick transitions, sharp internal corners, and low draft raise stress, sink, and ejection risk. Process can hide some of it for a while. It cannot replace a sound tool.
| Failure driver | What you often see on the part | First place to look |
|---|---|---|
| Poor gate location | Jetting, unbalanced fill, weld lines in bad spots | Gate size, position, number of gates |
| Bad venting | Burn marks, shorts, weak knit lines | Last-to-fill areas, ribs, parting line vents |
| Weak cooling | Warpage, sink, long cycle, dimensional drift | Channel layout, baffles, near-wall steel |
| Design mismatch | Flash risk zones, eject marks, assembly fit issues | Wall thickness, draft, radii, DFM review |

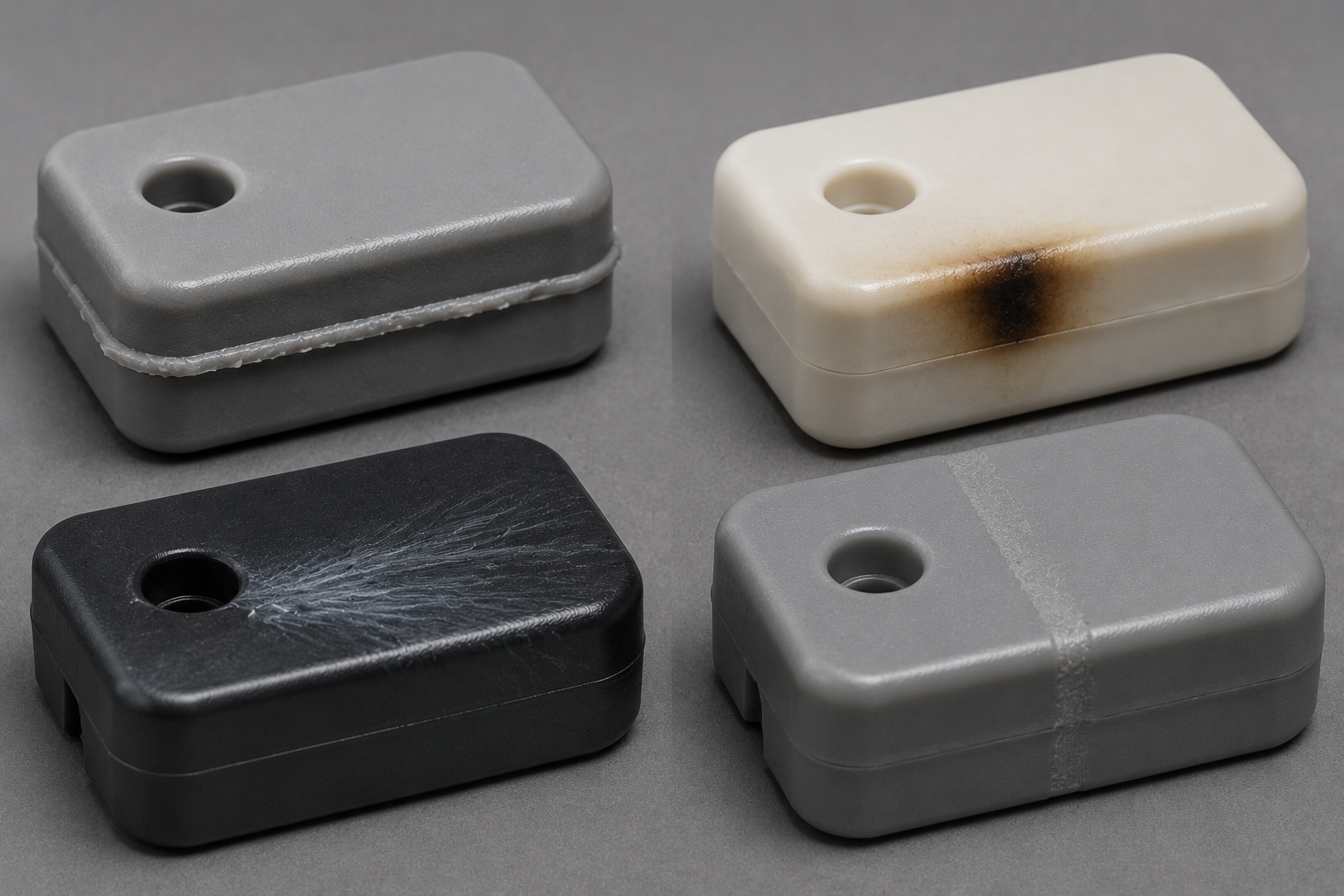

Proven Solutions for Flash, Burn Marks, Jetting, and Weld Lines?
Flash on a tight deadline makes everyone nervous. One more burr and the customer rejects the lot. I have been in that room more than once.
Flash: clamp, parting line, pack. Burns: vents and fill speed. Jetting: gate and initial velocity. Weld lines: gate layout, temp, speed, and vent at the knit.
Flash is melt escaping where the mold should seal. Causes include low clamp tonnage, worn parting line or pins, pack pressure too high, or vents cut too deep. I usually try process first: lower pack, shorten pack time if over-packed, confirm clamp within machine limits. Then we inspect the parting surface and pin fit. Deep vents can invite flash too—balance vent depth with seal.
Burn marks mean trapped gas or overheated melt. Add or improve vents at last-to-fill. Slow the initial injection speed. Drop melt temp if resin allows. Dry hygroscopic materials—moisture shows up as burns and splay fast.
Jetting looks like snaking folds on the surface. The melt entered too fast and did not spread on the wall. Move or reshape the gate for impingement, open the gate if design allows, or profile speed with a slower start. On one electronics bezel, a slower first stage fixed jetting without remaking the whole cavity.
Weld lines need fusion where fronts meet. Reduce splits from holes and bosses where you can in design. In production, raise melt temp and fill speed within material limits, vent at the knit, and relocate gates so the line is not on a load path. Flow leaders in the part can help when the mold is already fixed.
| Defect | Likely cause (short list) | Proven fix order |
|---|---|---|
| Flash | Clamp, worn seal, over-pack, vent depth | Process → parting line repair → vent depth review |
| Burn marks | Trapped air, fast fill, hot melt, wet resin | Vents at end-of-fill → speed/temp → drying |
| Jetting | Small or direct gate, high initial speed | Gate geometry/location → speed profile → gate size |
| Weld lines | Flow splits, cold/slow melt, no vent at knit | Gate strategy → temp/speed → vent at meeting point |
When to Adjust Process Parameters vs. When to Redesign the Mold?
You tweak pressure for the third shift and the defect returns on Monday. That is when I ask if the tool is asking the process to lie.
Tune process first for many one-off or mild issues. Redesign when gates, vents, or cooling cannot reach quality no matter how you profile fill and pack.
Adjust parameters first when the mold is fundamentally sound and you need stability across batches. Flash often responds to pack and clamp. Burns often respond to vent tweaks plus slower fill. Jetting often responds to velocity profile. Weld lines often respond to temp, speed, and pack. Decoupled molding and cavity pressure data help—you see fill vs pack instead of guessing.
Redesign the mold when the same defect survives validation. Chronic weld lines on a structural rib because the gate must stay where it is—that is a gate or flow redesign. Vents that cannot reach rib tips without EDM changes—that is tooling. Warpage from cooling imbalance across a long part—that is channel layout. Wrong gate type for glass-filled resin—that is DFM.
I use short-shot studies in trial and mold flow simulation before steel is final when I can. Simulation does not replace trial, but it cuts surprise. Process optimization can mask a bad gate for one machine. A robust mold repeats on another press.
| Situation | Try process first | Plan mold redesign |
|---|---|---|
| Occasional flash after tool wear | Yes—pack/clamp, then maintenance | If parting line damage is chronic |
| Burns only at one rib end | Yes—speed, temp, local vent polish | If vent path cannot be added in steel |
| Jetting on every cavity | Yes—speed profile | If gate must impinge on wall and cannot |
| Weld line on load-bearing feature | Limited—temp/speed help | Yes—relocate gate or merge flow |
| Warpage over spec every run | Minor—hold/pack timing | Yes—cooling balance, wall thickness |
Great parts start with a mold built for flow, venting, cooling, and gates. Then process turns that design into repeatable production. I still learn that lesson on every hard project.
Conclusion
Molding fails when design, vents, cooling, and gates fight the melt. Fix the tool when process hits a wall; tune first when the tool is sound. That order saves scrap and time.
